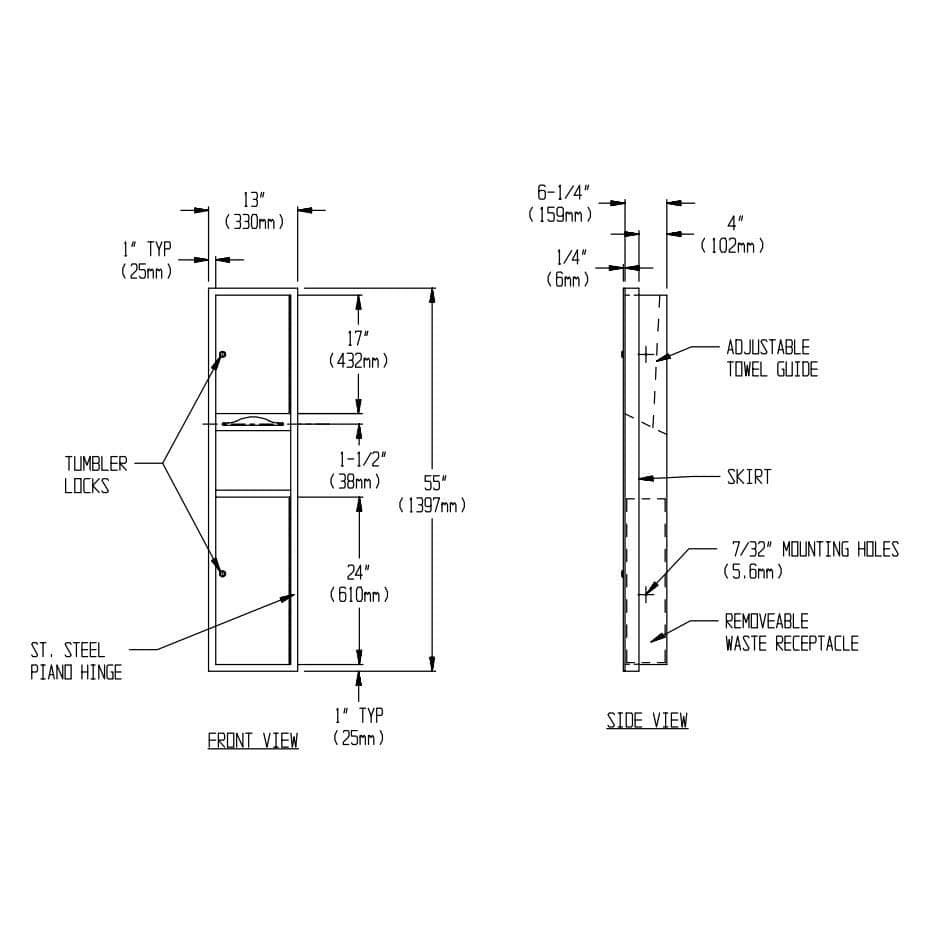

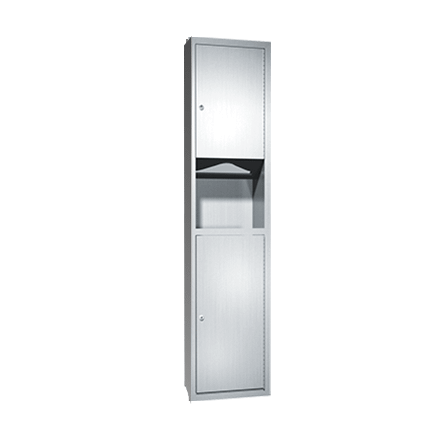

The ASI 0467-2 is a great combination of a paper towel dispenser and waste receptacle, perfect for restrooms with limited space. It features a double-pan construction door with 'no-Flex' fiberboard filler, adding extra rigidity and strength. The door is attached to the cabinet using a 3/16' diameter heavy-duty, multi-staked stainless steel piano hinge. Made of 22 gauge Type 304 stainless steel with a satin finish, it looks great and enhances the facility's decor. It's semi-recessed with a -2 collar. The dispenser can hold up to 600 C-fold, 800 multi-fold, or 1,100 single-fold paper towels, and the waste receptacle has a 7 Gal. (26.5 L) capacity. It requires a rough opening of 11-1/2 inches wide, 53-1/2 inches high, and 4 inches deep. To prevent theft and vandalism, it's secured by two keyed tumbler locks. All edges are deburred for user safety, offering convenience to both users and maintenance staff.
Using the ASI 0467-2 is easy. First, make sure you have the correct rough opening size in your restroom wall. Then, install the unit semi-recessed. You can load up to 600 C-fold, 800 multi-fold, or 1,100 single-fold paper towels into the dispenser part. When the paper runs out, just open the door using the key and refill it. For the waste receptacle, when it reaches the 7-gallon capacity, open the door and empty the trash. Remember to keep the keys in a safe place to prevent unauthorized access. To maintain it, wipe the satin finish regularly with a soft cloth to keep it looking good. Check the locks from time to time to ensure they are working properly. And always be careful around the edges, although they are deburred, still handle with care to avoid any minor injuries.
