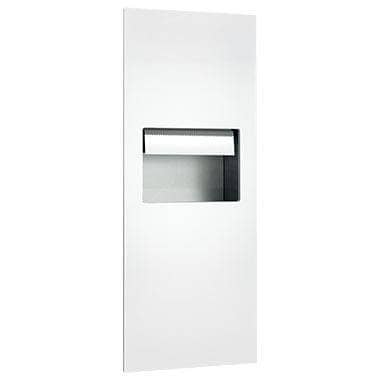

Please note: once production starts, ASI Piatto items can't be canceled or returned. Double - check your measurements before ordering. This elegant automatic paper towel dispenser and waste receptacle is designed to fit seamlessly into the washroom wall. The phenolic door is attached with field - adjustable, high - quality hinges and secured by an internal spring - loaded latch. All hardware is hidden, giving the Piatto Collection a minimalist look. The proximity - sensing no - touch unit can hold and dispense a standard 8 - inch diameter (203mm) x 8 - inch wide (203mm) towel roll up to 800 ft. (244m) long and an 8 - inch wide (203mm) stub roll up to 4 - inch diameter (102mm). It automatically switches to the main roll when the stub roll is used up, provided the feed tabs are properly set. Powered by 4 D - size batteries (not included), it activates towel dispensing when hands are in the sensor zone. You can set the length, delay, and paper - saver switches to choose the towel length. The waste receptacle has a 9.9 - gallon (37.3 L) capacity and needs to be emptied manually.
Using this paper towel dispenser is easy. First, insert 4 D - size batteries (which aren't included). Make sure the feed tabs are correctly engaged for the standard and stub towel rolls. When you place your hands in the sensor zone, the dispenser will automatically give you a towel. You can customize the length of the towel by setting the length, delay, and paper - saver switches. Remember, once the production of ASI Piatto items starts, you can't cancel or return them, so double - check your measurements before ordering. To maintain the dispenser, keep it clean and periodically check the hinges and latch. Empty the 9.9 - gallon waste receptacle manually when it's full.
